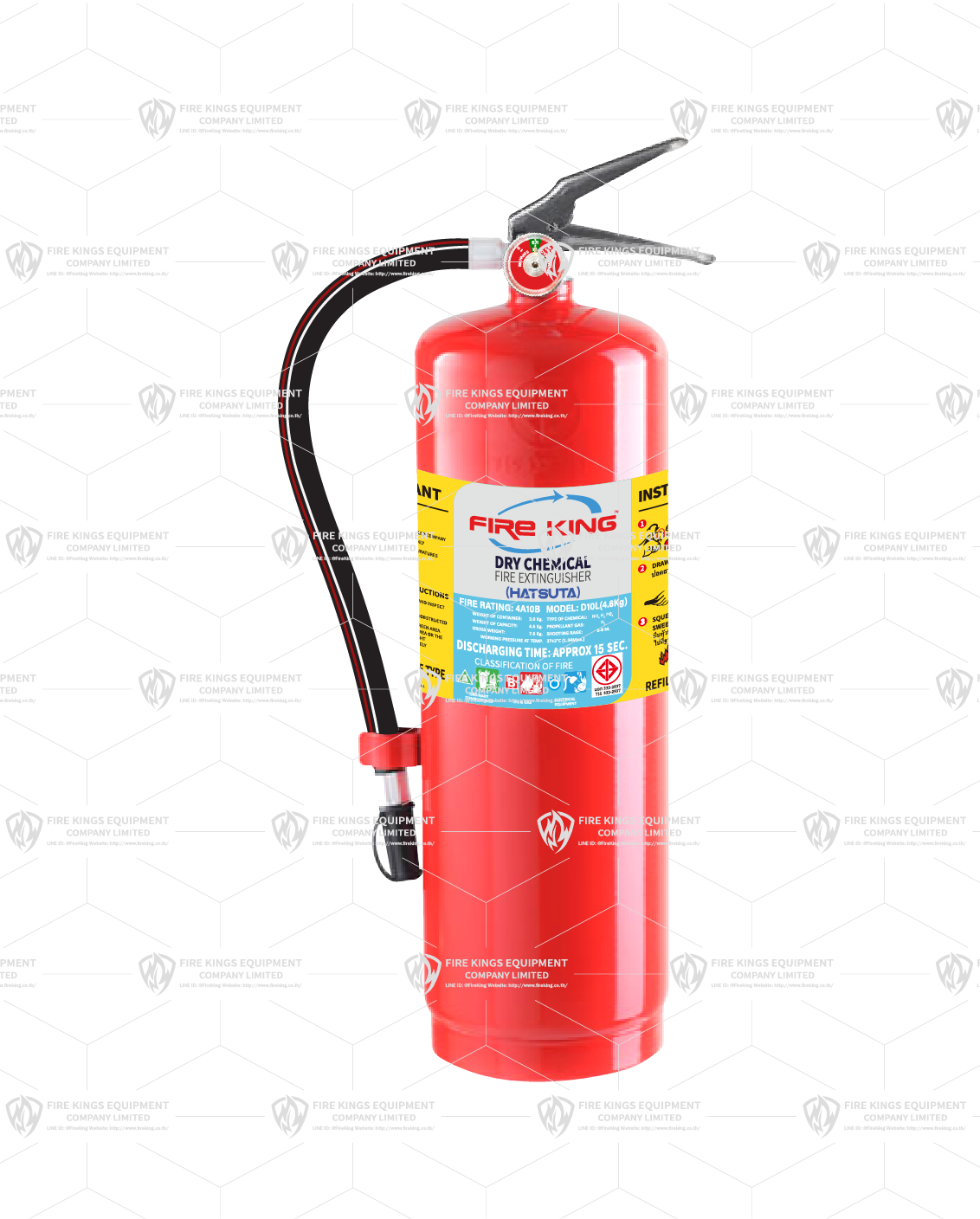

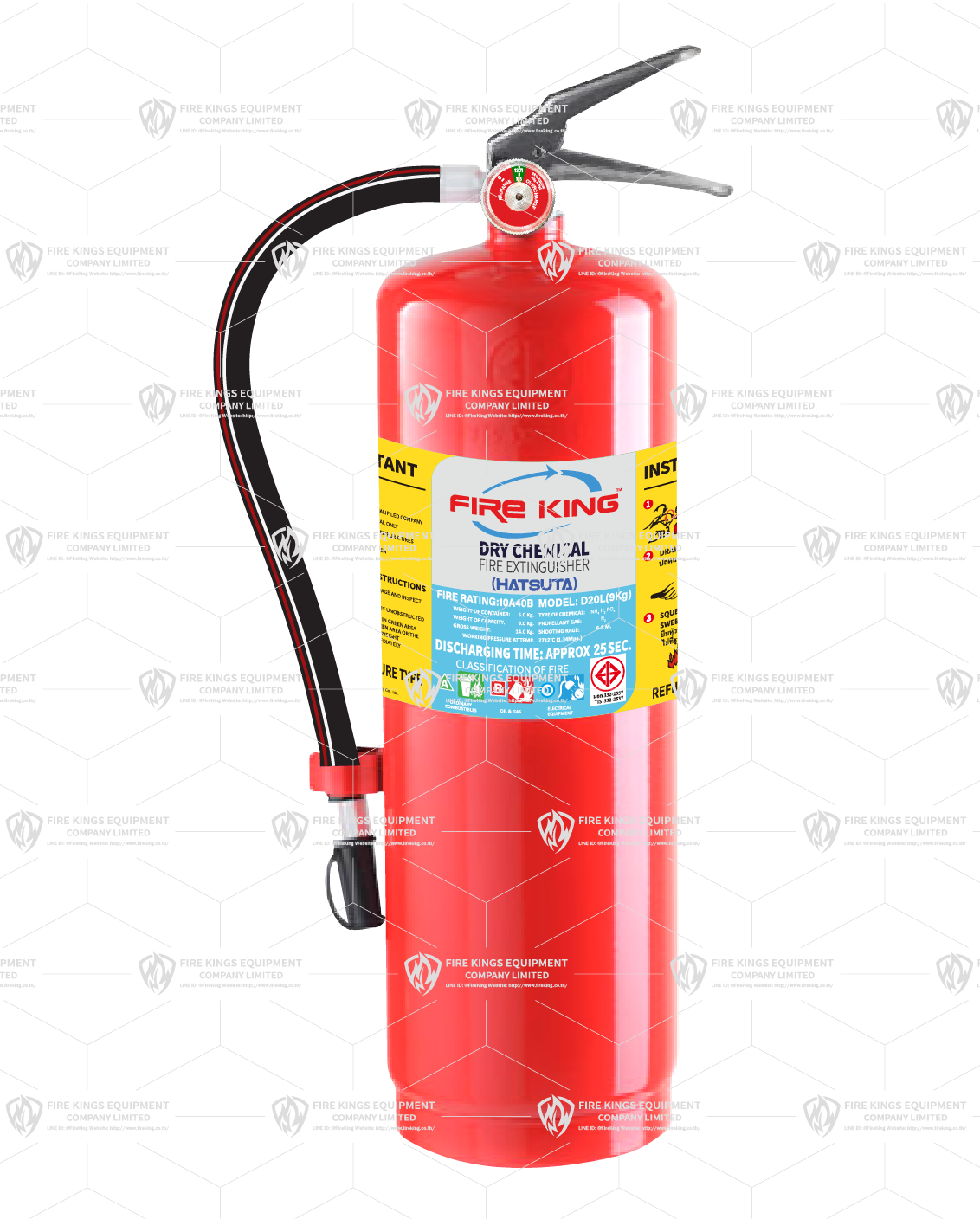

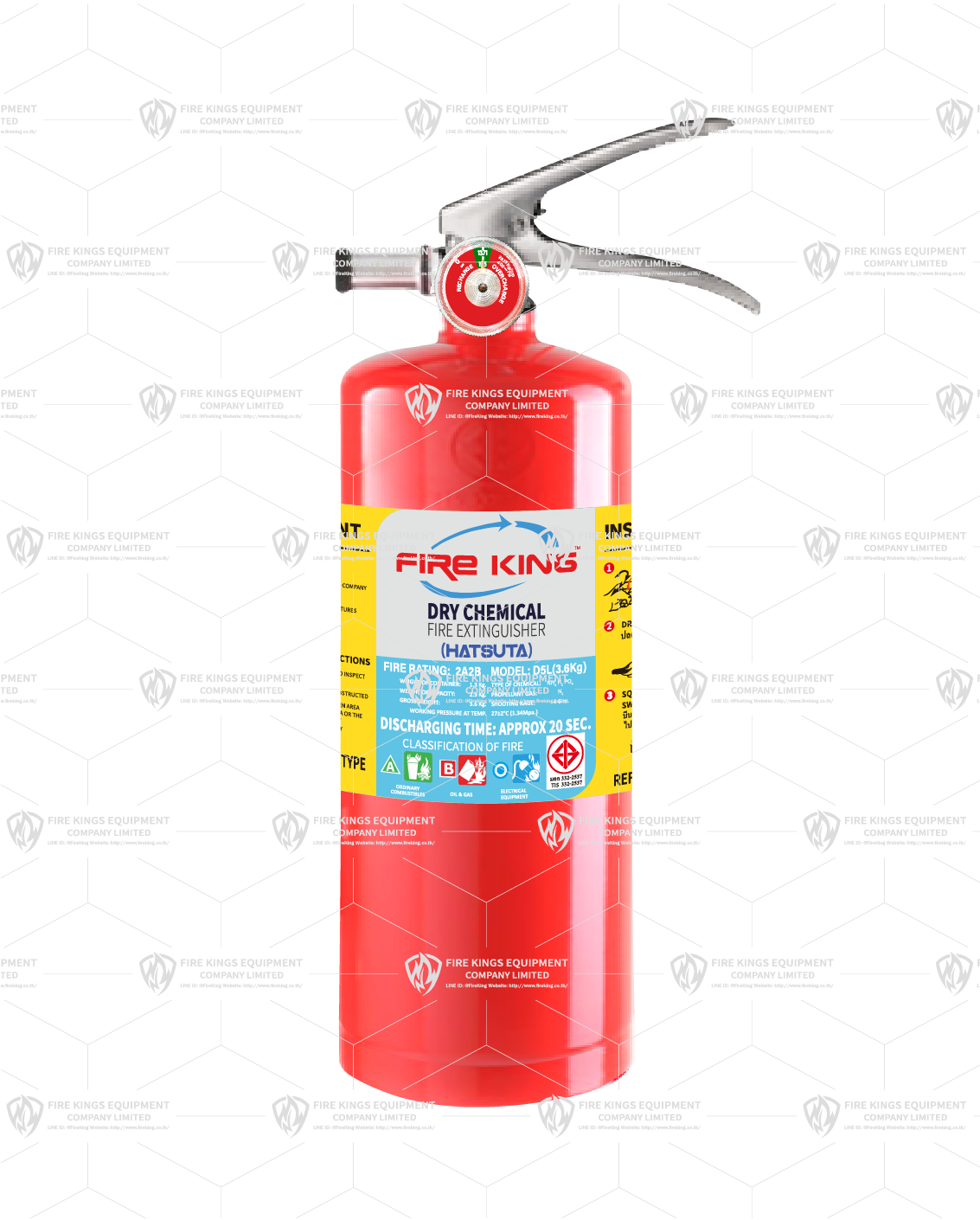

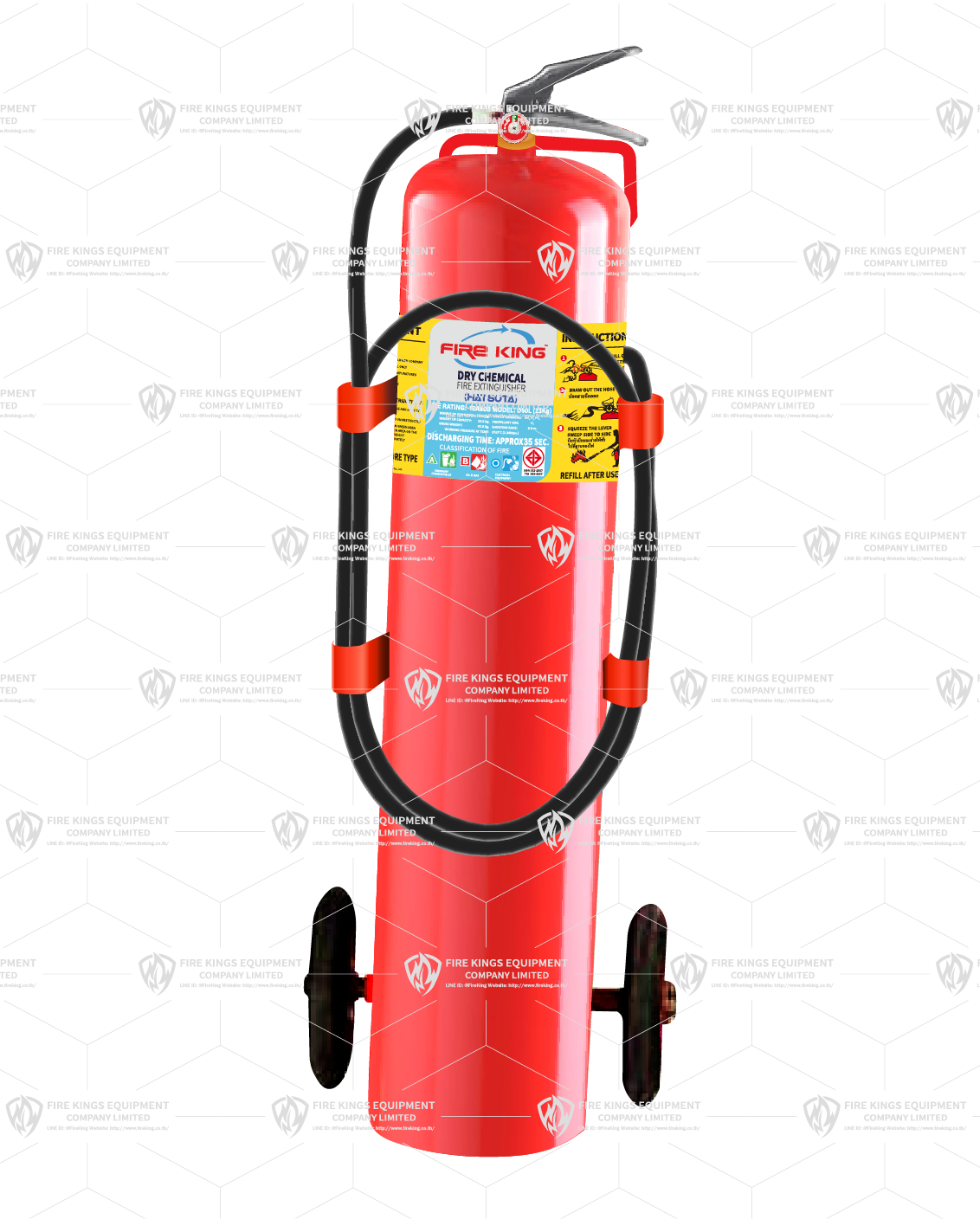

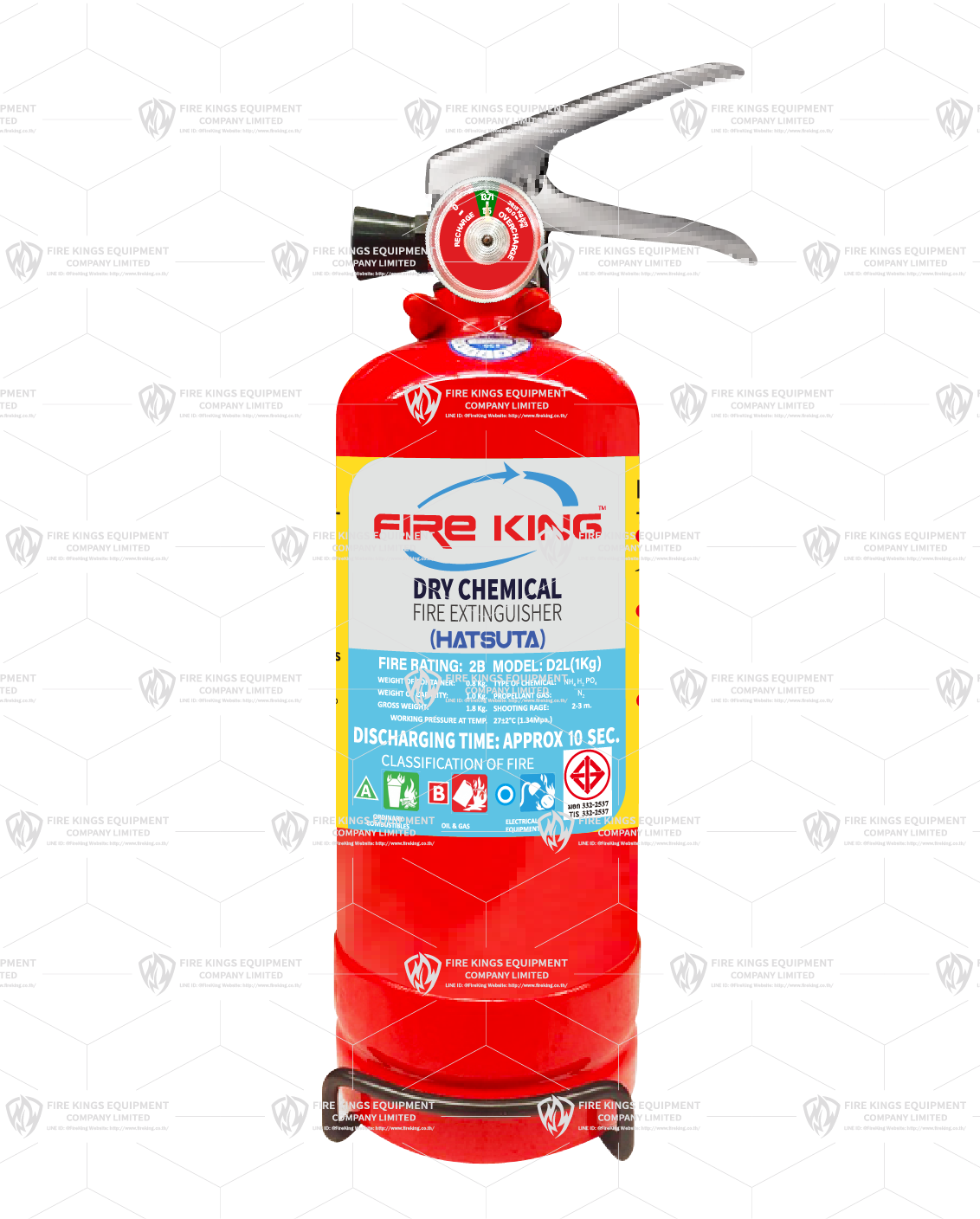

Dry Chemical(HASUTA) Extinguisher


  • Mounting :
 Surface / cabinet
  • Handle :
 Stainless

Description




Specifications

Sizes: 10 Lbs. 15 Lbs.
Weight of agent: 4.6 Kg 7.0 Kg
Weight of container: 3.0 Kg 3.5 Kg
Gross weight: 7.6 Kg 10.5 Kg
Overall height: 510 mm 555 mm
Diameter: 138 mm 152 mm
Propellant: Nitrogen
Working pressure at 27 ± 2 °C: 1.34 MPa
195 PSI
Aprox discharging time: 15 Sec. 20 Sec.
Shooting range: 6-8 m.

Cautions


  • * Must be refilled by qualified by company
  • * Refill with dry chemical only
  • * Do not store at high temperatures above 49°C(120°F)
  • * Keep away from children

Maintenance


  • * Check the pressure guage and inspect extinguisher monthly.
  • * Examine that the hose is unobstructed.
  • * Guage pointer must be in green area, if pointer is not in green area or the weight is below gross weight, please contact us immediately.
