Angle Hose Valve - F12


Descriptions


Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.


Specifications

Model F12-40 F12-65
Certificate UL Listed / FM Approved
Standard ANSI / UL 668
Body Brass as ASTM B124 C37700
Spool assembly
Handwheel Ductile iron as A536, 60-40-18
Test Factory hydro test 600 psi
W. pressure 300 psi (2.07 MPa)
Surface Rough brass / chrome plated

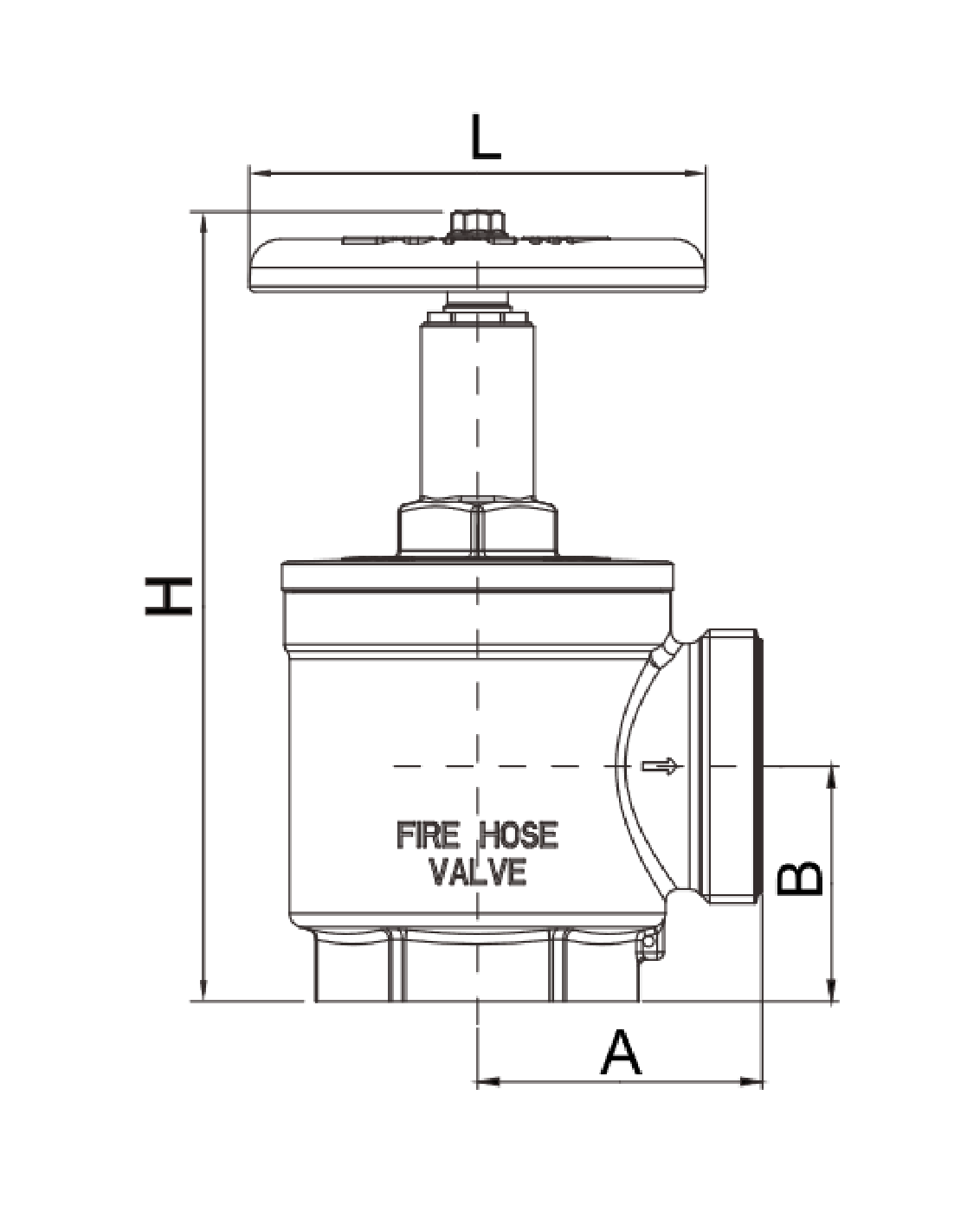

Size 1.5" 2.5"
A(mm) 66 84
B(mm) 50 68
H(mm) 169.5-195 288
L(mm) 100 125
Inlet 1.5" NPT, female 2.5" NPT, female
Outlet 1.5" NPT, male 2.5" NPT, male
