Products

Pressure Reducing Angle Valve - F13


  • Certificate:
UL Listed / FM Approved
  • Standard :
ANSI / UL 668
  • Body & Adjustable ring:
Brass as ASTM B124 C37700
  • Handwheel :
Ductile iron as A536, Gr.60-40-18
  • Limited ring :
Nylon
  • Test :
Factory hydro test 350 psi
  • W. pressure :
175 psi (1.21 MPa)
  • Surface :
Rough brass / chrome plated

Descriptions


Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.

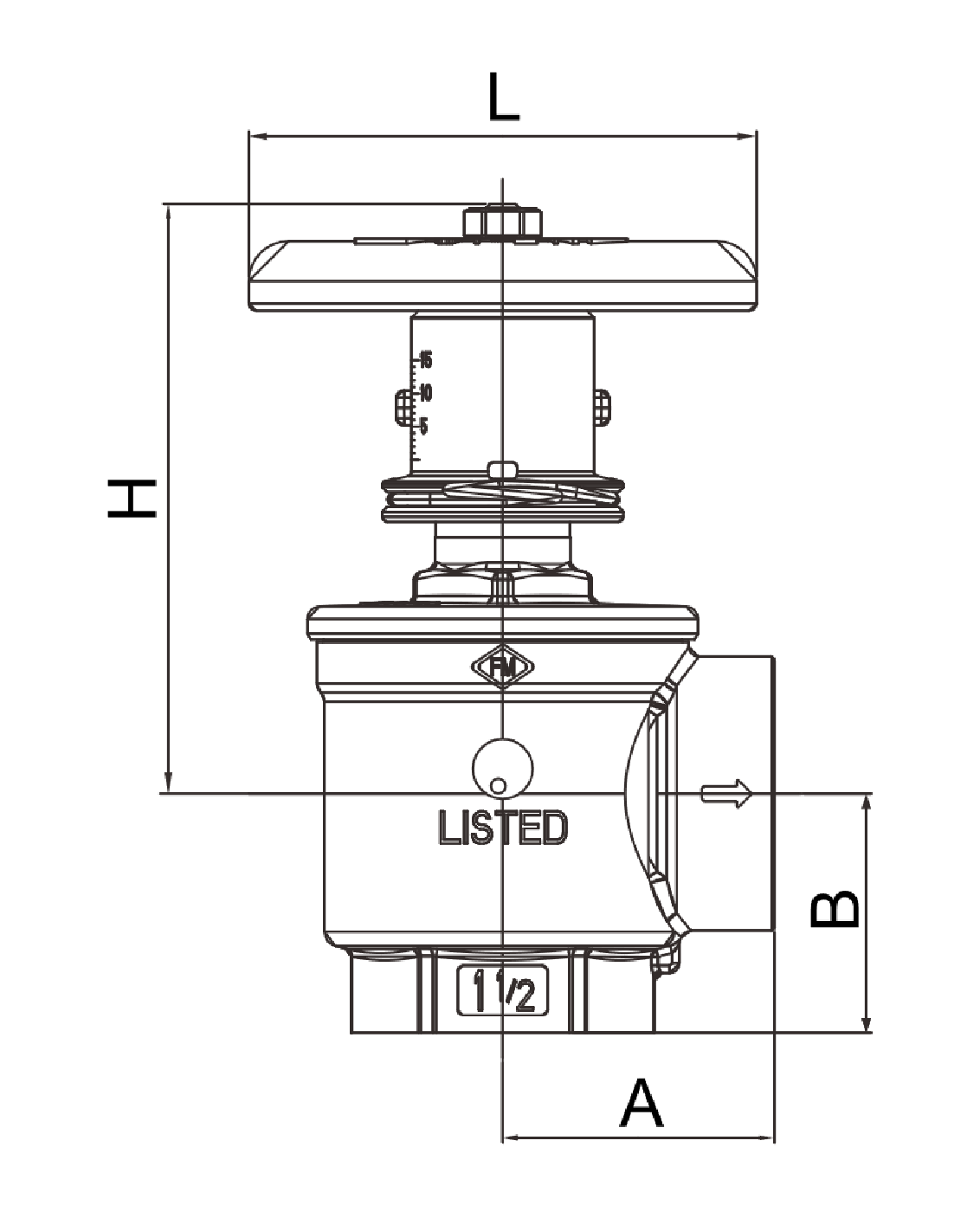

Specifications

Model F13-40 F13-65
Size 1.5" 2.5"
A(mm) 57.5 83
B(mm) 48 66.5
H(mm) 123.5~145 165~206.5
L(mm) 100 130
Inlet 1.5" NPT, female 2.5" NPT, female
Outlet 1.5" NPT, female 2.5" NPT, female
