Threaded Oblique Landing Valve - F21


Descriptions


Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.


Specifications

Model F21-50(No FM) F21-65
Certificate BSI / FM / LPCB Approved
Standard BS 5041-1
Body Copper alloy, T3mm
Handwheel Cast iron / aluminium alloy
Blank cap Copper alloy / plastic
Chain SS304
Test 22.5 bar
Surface Rough coppered / red or yellow paint

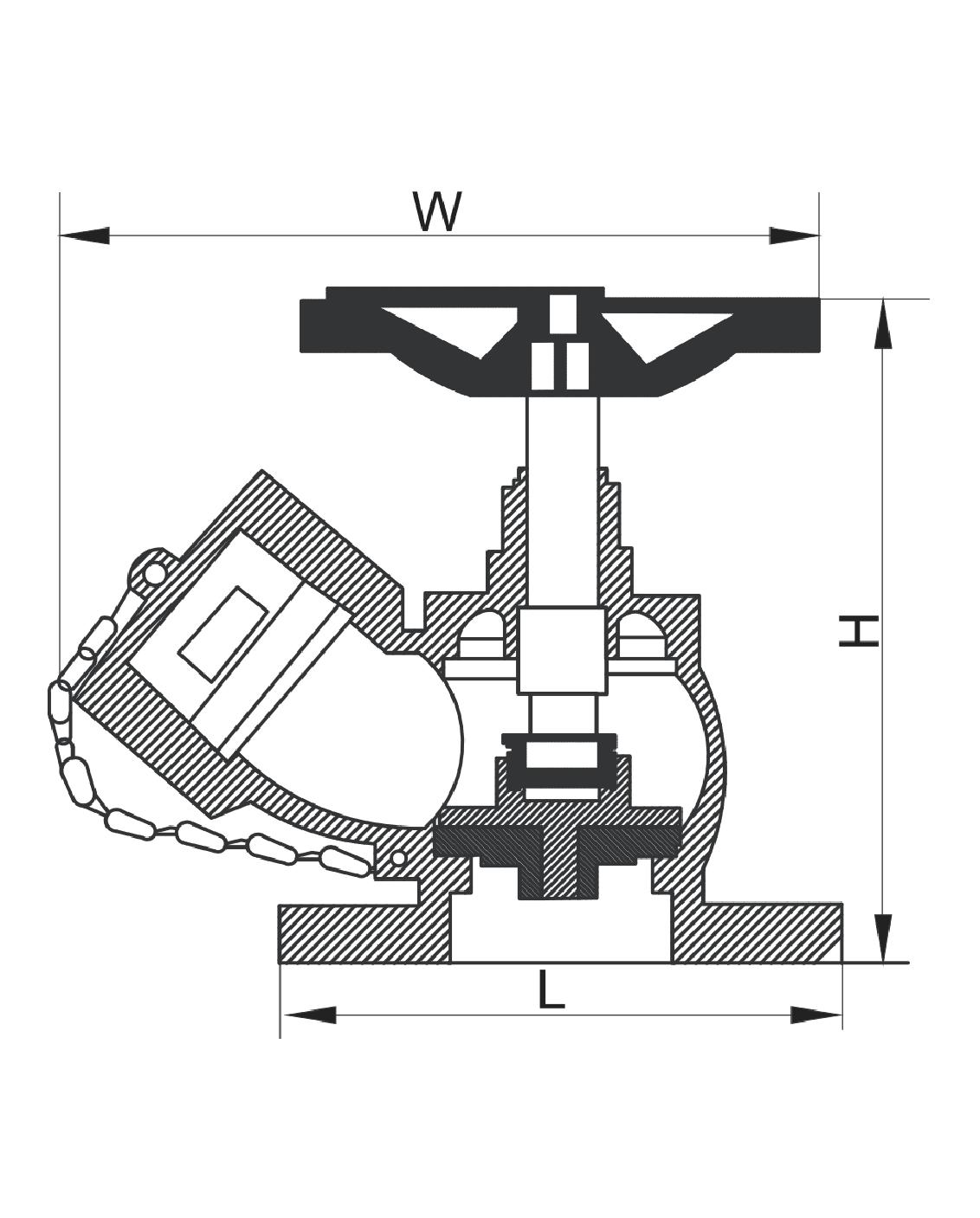

Size DN50 DN65
H(mm) 198
W(mm) 225 235
L(mm) 165 185
Inlet Flanged as EN 1092-22.5" BSP
Outlet Female BS336
Flow rate 8.5 L/S
Fully open 4.5 turns
