Threaded Horizontal Landing Valve - F24


  • Certificate:
BSI / FM / LPCB Approved
  • Standard :
BS 5041-1
  • Body :
Copper alloy, T3mm
  • Handwheel :
Cast iron / aluminium alloy
  • Blank cap :
Copper alloy / plastic
  • Chain :
SS304
  • Test :
22.5 bar
  • Surface :
Rough coppered / red or yellow paint

Descriptions


Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.


Specifications

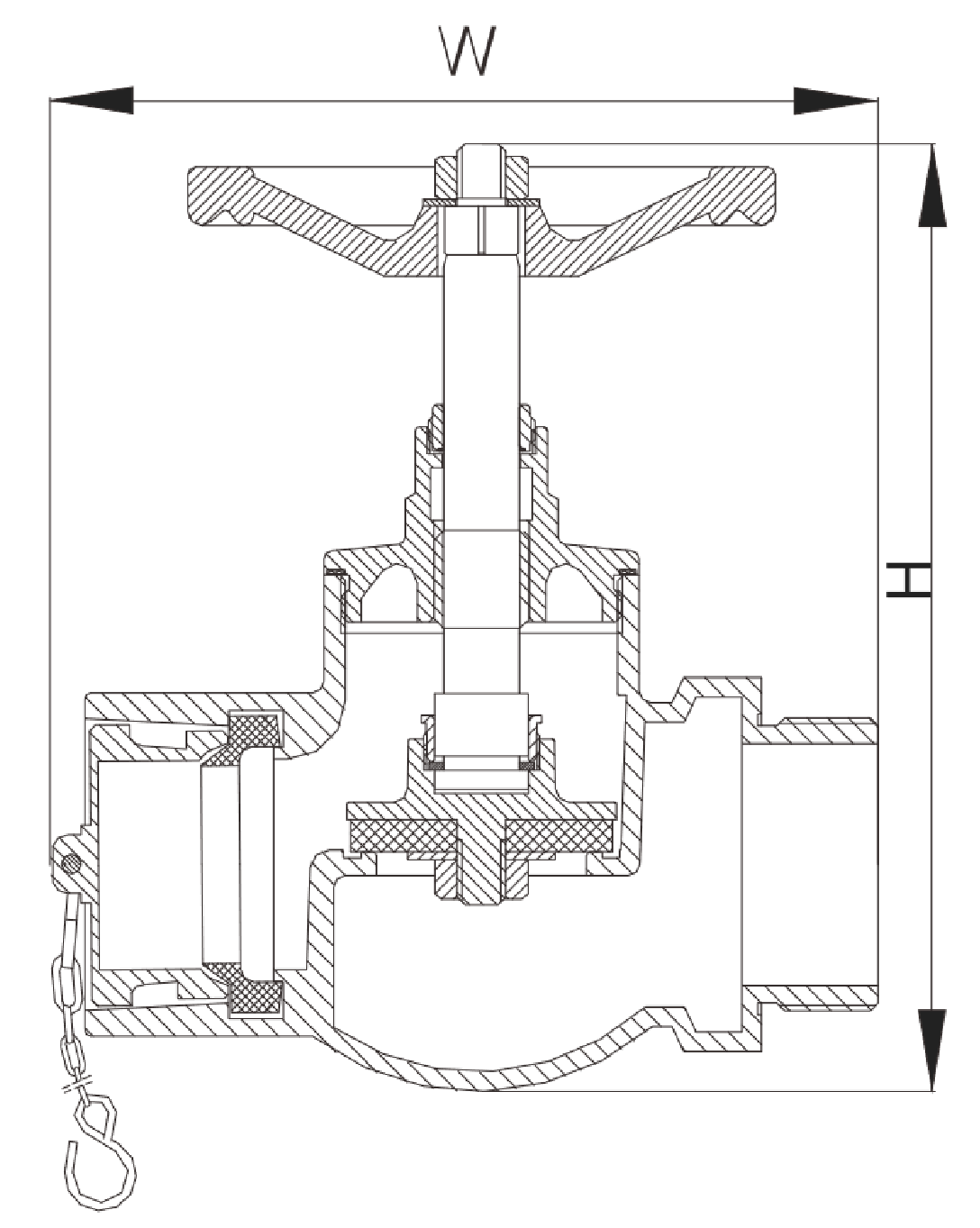

Model F24-65 F24-65P(BSI)
Size DN65
H(mm) 235
W(mm) 213
Inlet 2.5" BSPT 2.5" BSP
Outlet Female BS336
Flow rate 8.5 L/S
Fully open 4.5 turns
