Products

Single Hydrant - F15


Descriptions


Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.


Specifications

Model F15-HY65
Certificate UL Listed / FM Approved
Standard ANSI / UL 668
Body Brass as ASTM B124 C37700
Bonnet / disc
Handwheel Ductile iron as A536, 60-40-18
Test Factory hydro test 300 psi
W. pressure 175 psi (1.21 MPa)
Surface Rough brass / chrome plated
Function Fire hydrant connecter

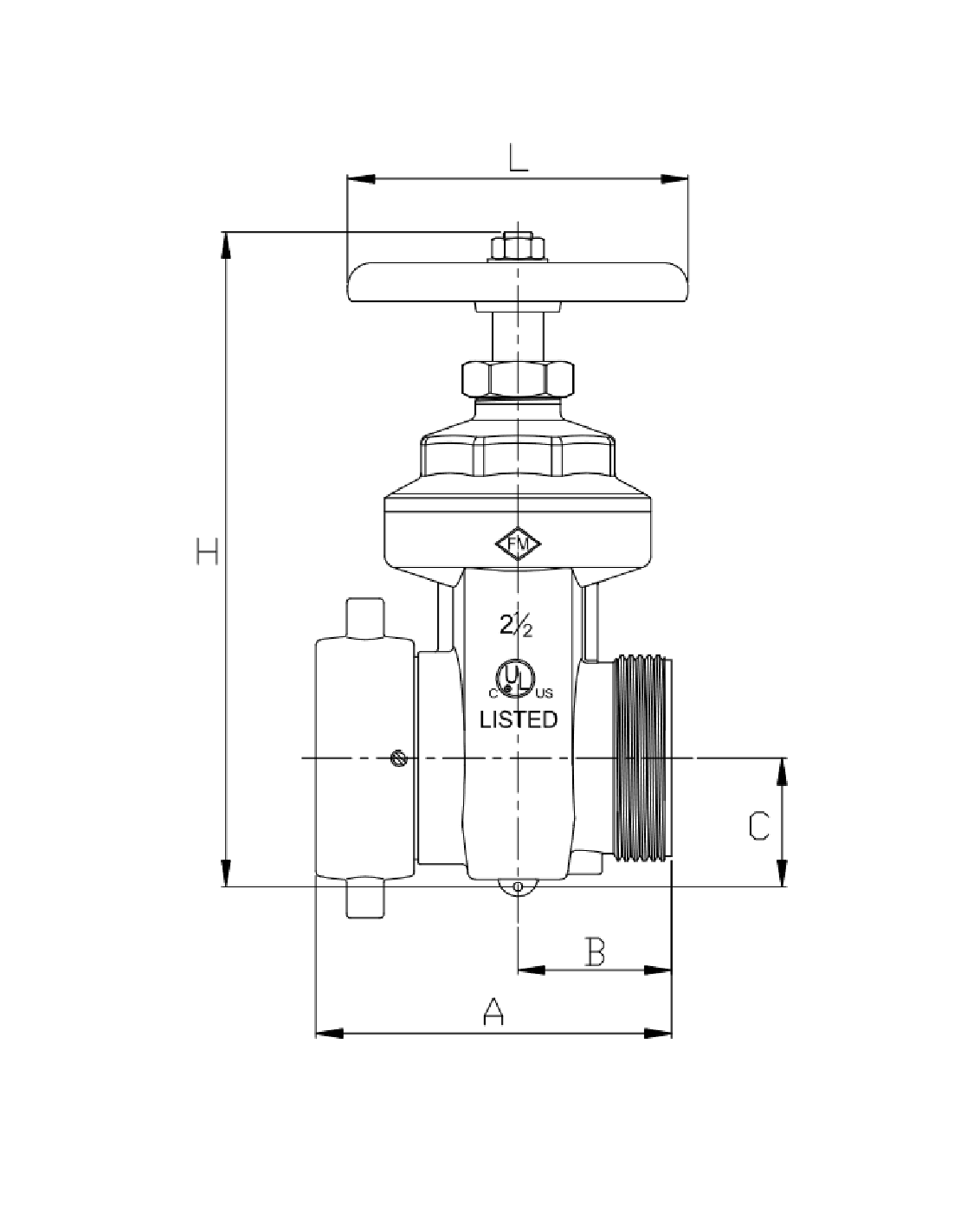

Size 2.5X2.5 "
A(mm) 135
B(mm) 58
C(mm) 48
H(mm) 246
L(mm) 101
Inlet 2.5" NH, male
Outlet 2.5" NH, female
Others with female swivel pin lug
