Threaded Oblique Landing Valve - F22


Descriptions


Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.


Specifications

Model F22-65 F22-65P(BSI)
Certificate BSI / FM / LPCB Approved
Standard BS 5041-1
Body Copper alloy, T3mm
Handwheel Cast iron / aluminium alloy
Blank cap Copper alloy / plastic
Chain SS304
Test 22.5 bar
Surface Rough coppered / red or yellow paint
Size DN65

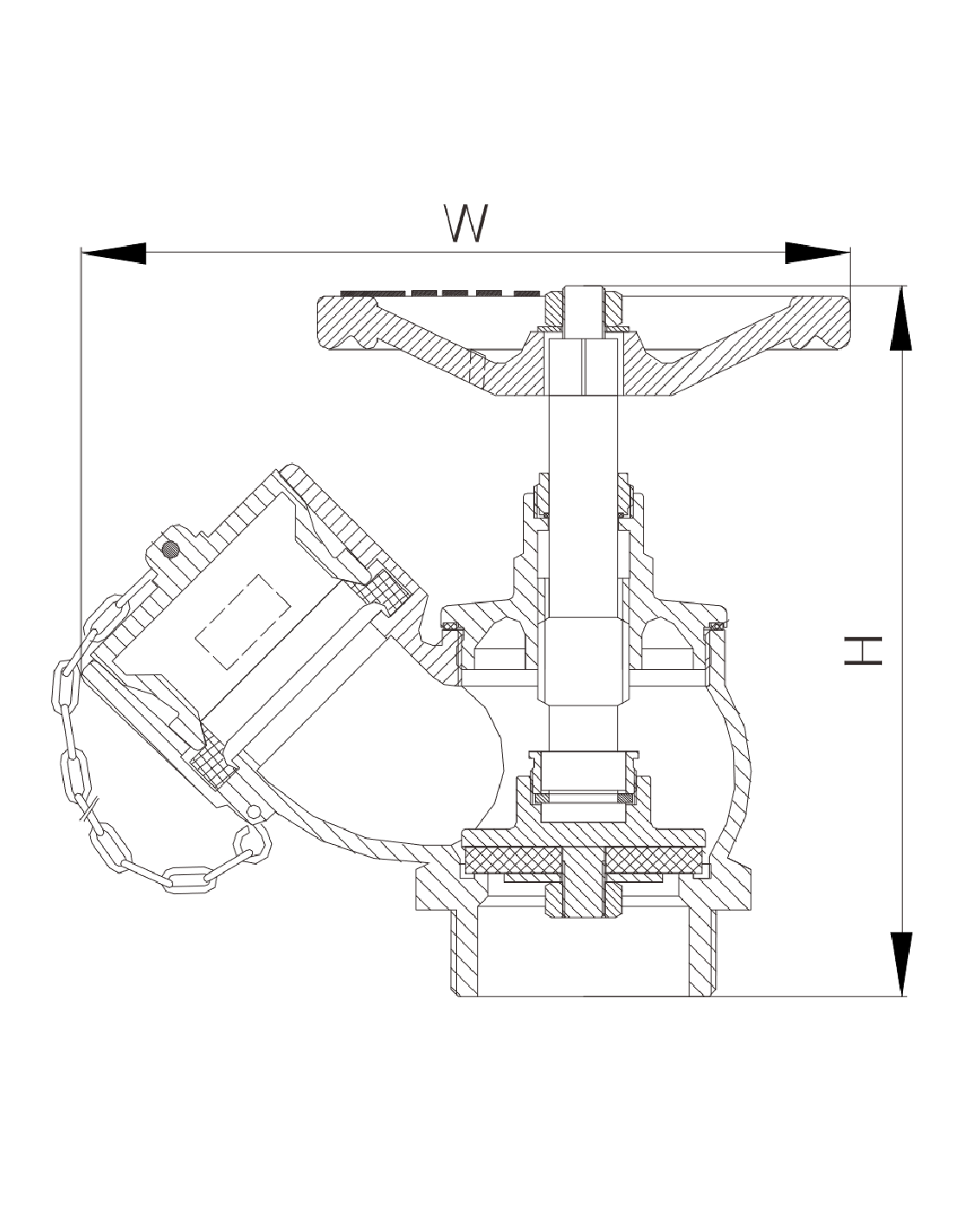

H(mm) 205 200
W(mm) 218
Inlet 2.5" BSPT 2.5" BSP
Outlet Female BS336
Flow rate 8.5 L/S
Fully open 4.5 turns
