Flanged Right-Angle Landing Valve - F26


  • Certificate:
BSI / FM / LPCB Approved
  • Standard :
BS 5041-1
  • Body :
Copper alloy, T3mm
  • Handwheel :
Cast iron / aluminium alloy
  • Blank cap :
Copper alloy / plastic
  • Chain :
SS304
  • Test :
22.5 bar
  • Surface :
Rough coppered / red or yellow paint

Descriptions


แจกเครดิตฟรี สล็อต บาคาร่า คาสิโนออนไลน์ JQK41Fire hydrant valves are important source of water which is crucial for fighting fires on any level of your building. Fire hydrant valve is a core part of the hose system that acts as a manual stop valve giving you complete control over your fire fighting system.

TPMC provides fire hydrant valves in UL/ FM/ BSI/ LPCB approved, including angle hose valve, pressure reducing angle valve, single hydrant gate valve, oblique type landing valve, horizontal type landing valve, right-angle type landing valve, bib-nosed type landing valve, pressure regulating landing valve.


Specifications

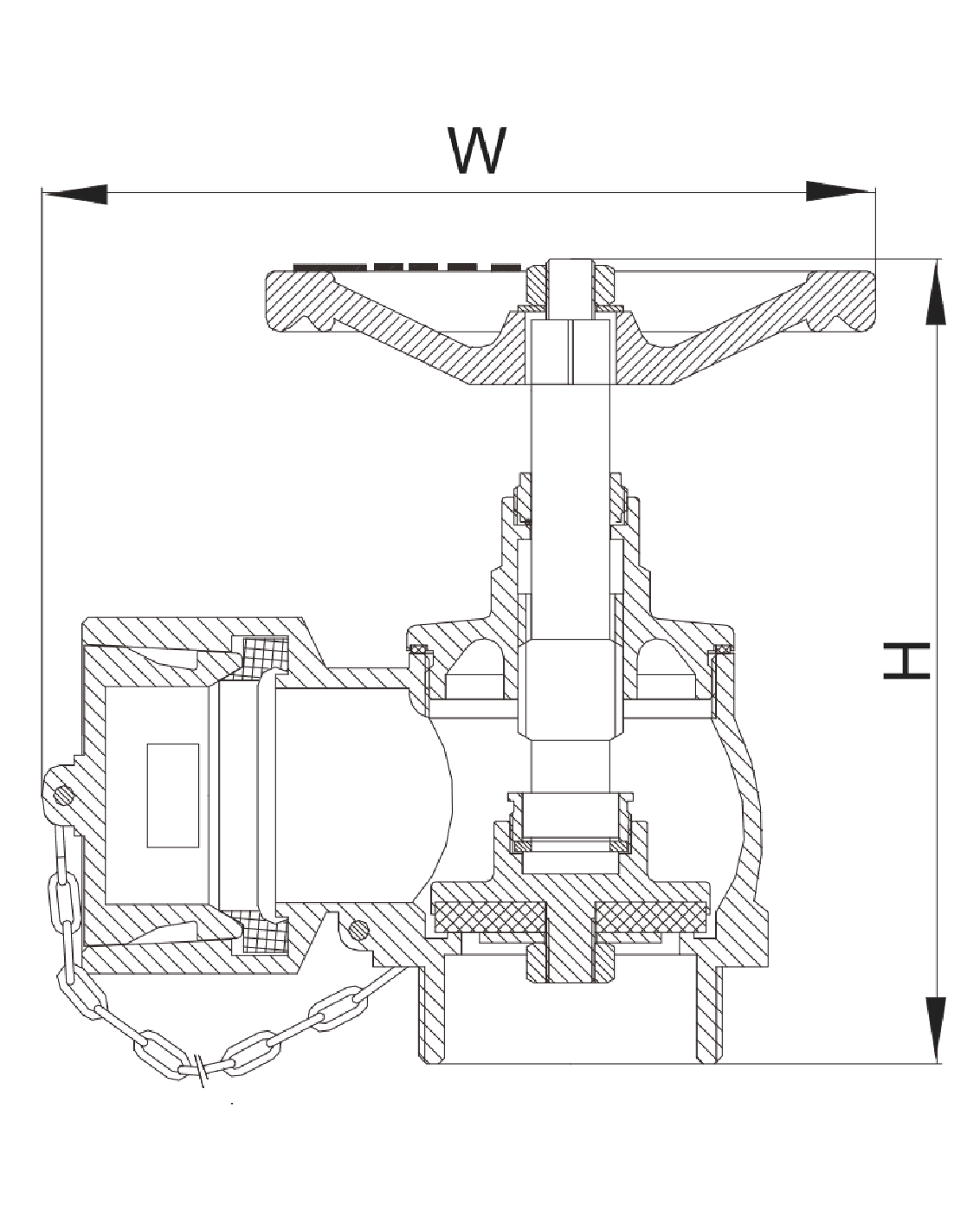

Model F26-65 F26-65P(BSI)
Size DN65
H(mm) 205 200
W(mm) 205
Inlet 22.5" BSPT 22.5" BSP
Outlet Female BS336
Flow rate 8.5 L/S
Fully open 4.5 turns
