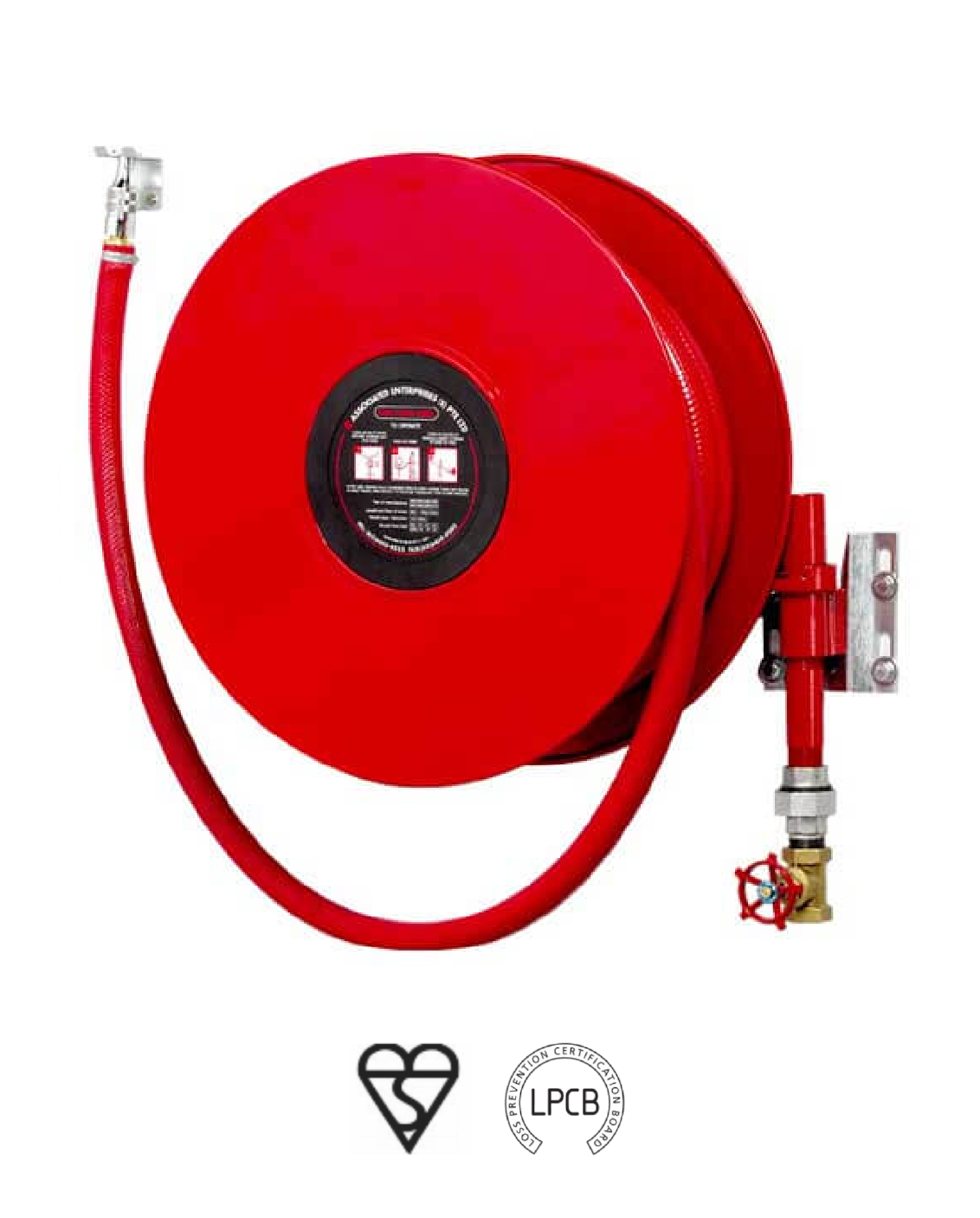

Swinging Fire Hose Reel - F36


  • Certificate :
BSI / LPCB Approved
  • Standard :
BS EN671-1
  • Mounting :
Surface / recesss / cabinet
  • Hose size :
19 / 25 mm
  • Hose length :
30 meters / customized
  • Nozzle :
Jet / spray type shut-off nozzle
  • Test  Pressure :
18 bar

Descriptions


Conforming to BS standard, fire hose reel provides a steady and quick water supply to combat a potential Class A fire risk. It is wall mounted in buildings with cabinet protection. An inline valve or external valve is furnished to control water from wet risers to hose. Fixed type fire hose reel only rotates in one plane. Swinging fire hose reel can also move along the swing arm.


Main parts and material


Hose PVC semi-rigid hose as EN694
Side plates Cold rolled mild steel / SS
Drum (reel) Carbon steel tube
Hose coating Red / black US inhibitor
Slide plates coating Red polyester epoxy power coating
1" Ball value Brass with chrome plated

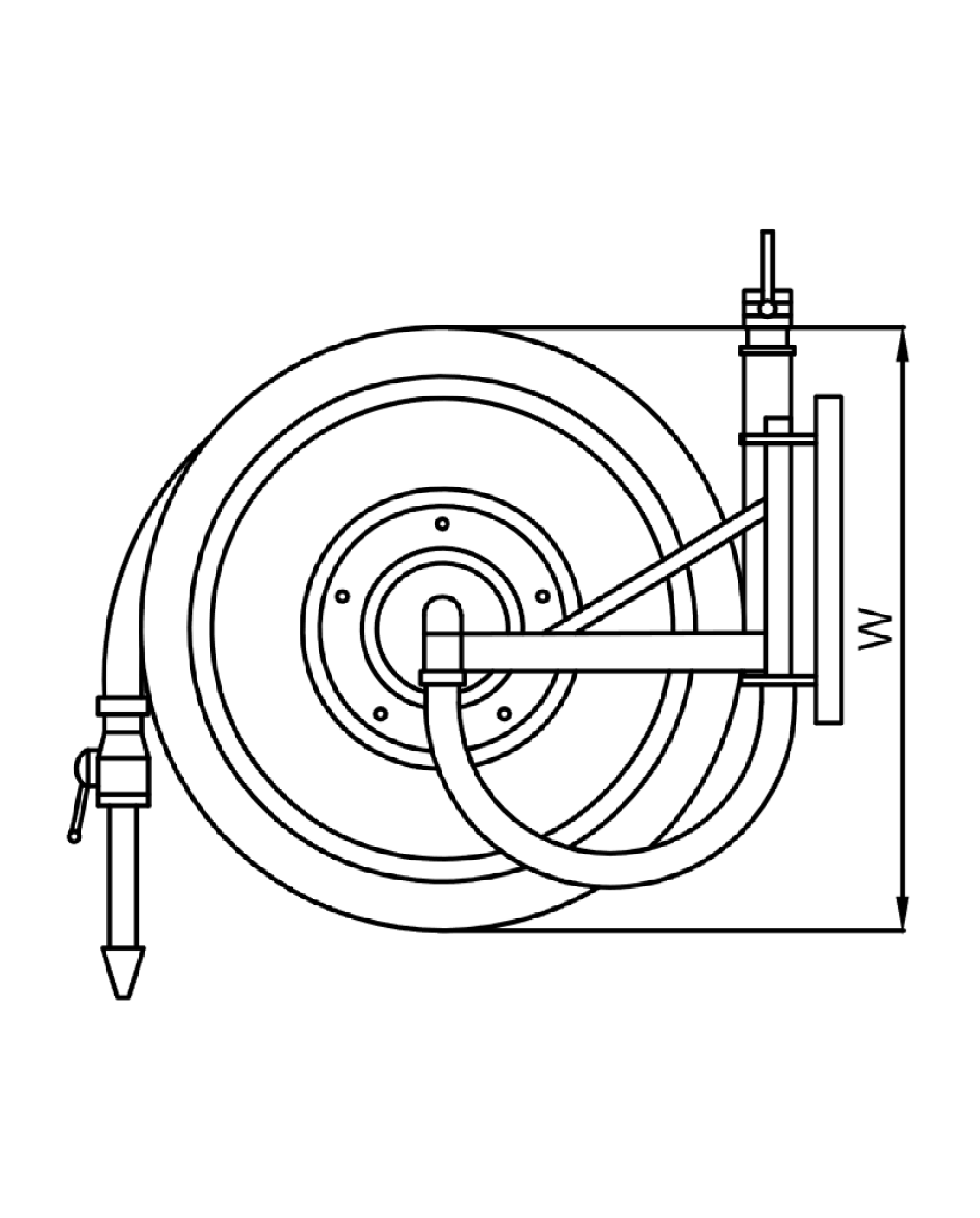

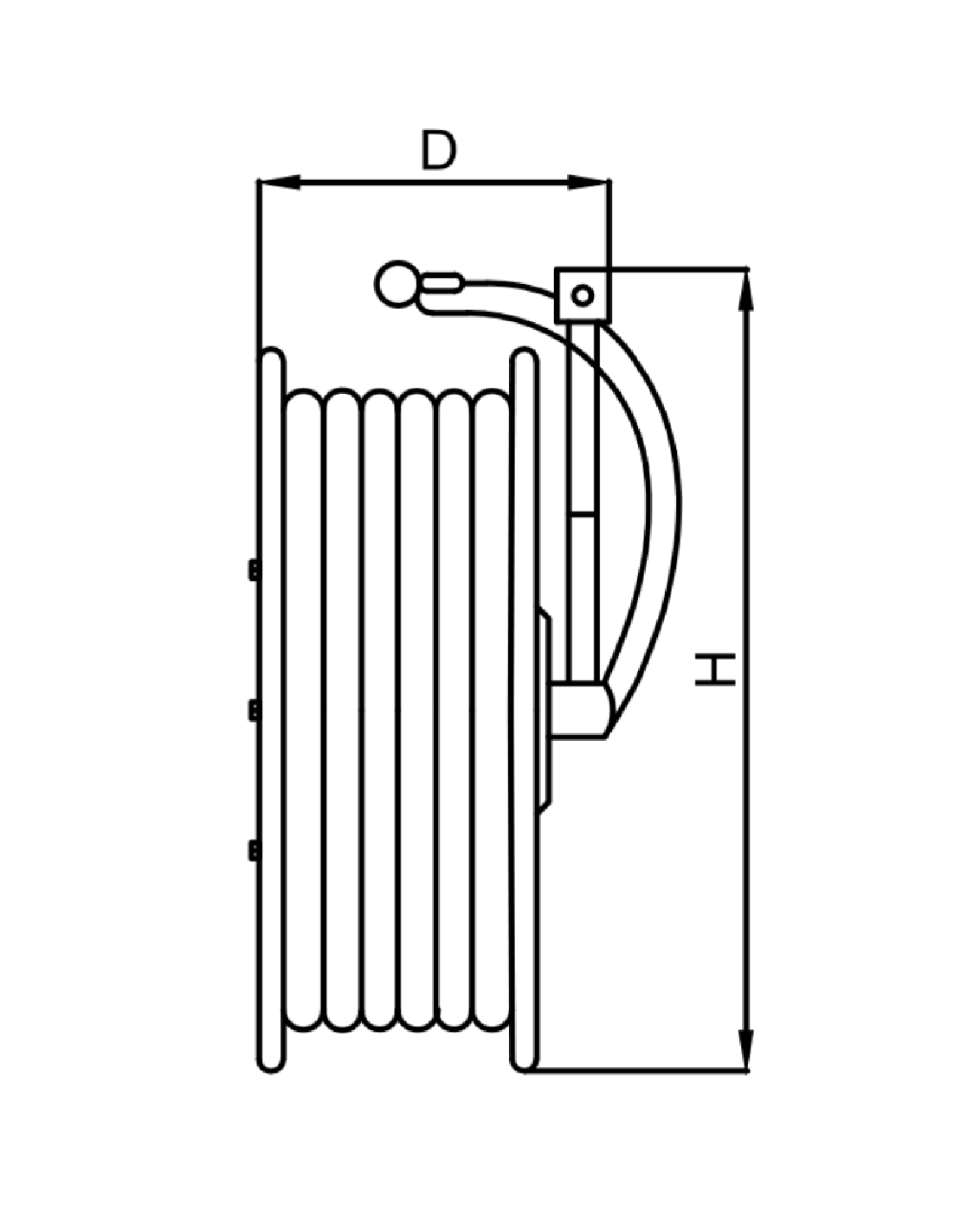

Specifications

Model F36-M19 F36-A19 F36-M25 F36-A25
Type Manual Automatic Manual Automatic
Hose Size(mm) 19 25 19 25
D(mm) 210 230 210 230
W(mm) 280-610 610-640 610-680 610-680
H(mm) 555 600
Inlet(female) 1" BSP
Outlet 6 / 7 / 8
Max working pressure 12 bar
