Continuous Flow Hose Reel - F39


  • Certificate:
ISO
  • Mounting :
Cabinet / trolley
  • Hose size :
1-1/4" or 1-1/2" (33/40mm)
  • Hose length :
30 / 60 m / customized
  • Nozzle :
Jet / spray type shut-off
  • Burst pressure :
21 bar
  • Application :
Off-shore drilling platform,
ship, helideck, etc.

Descriptions


Conforming to BS standard, fire hose reel provides a steady and quick water supply to combat a potential Class A fire risk. It is wall mounted in buildings with cabinet protection. An inline valve or external valve is furnished to control water from wet risers to hose. Fixed type fire hose reel only rotates in one plane. Swinging fire hose reel can also move along the swing arm.


Main parts and material



Hose PVC semi-rigid hose as EN694
Side plates Cold rolled mild steel / SS
Drum (reel) Carbon steel tube
Hose couplings Black UV inhibitor
Side plates coating Red polyester epoxy power coating
Crank Solid steel, with detachable
rewinding handle

Specifications

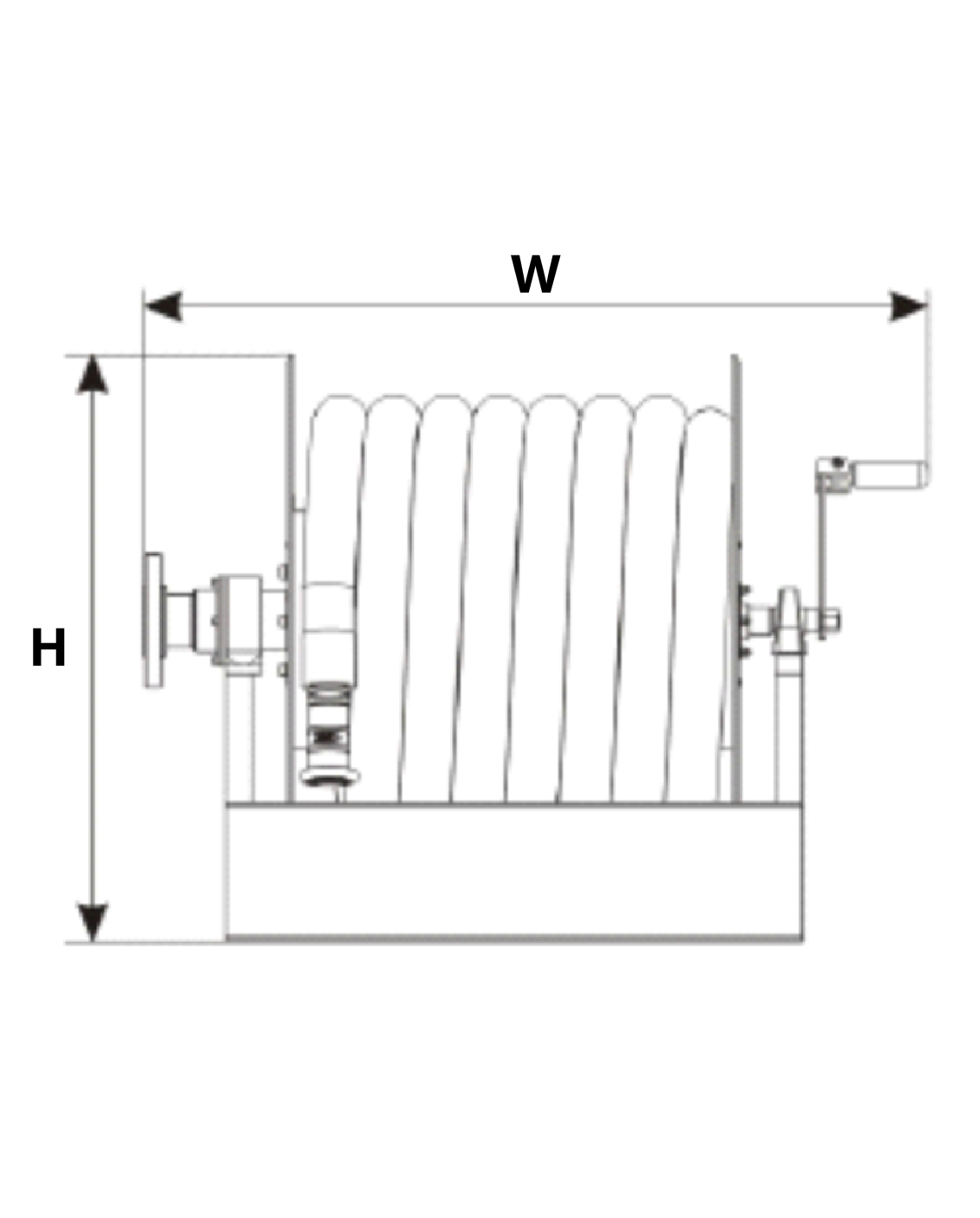

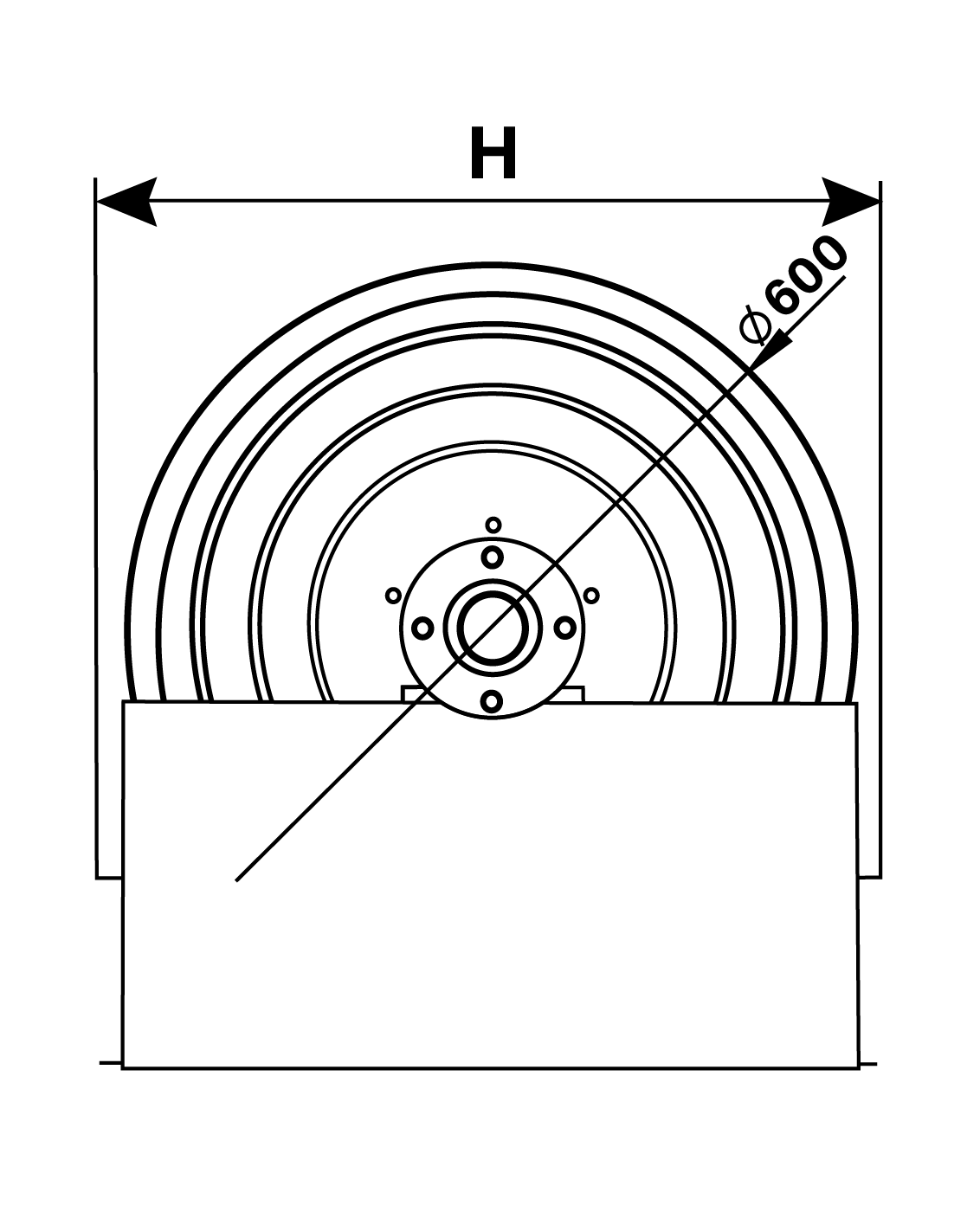

Model F39-32 F39-40 F39-32E F39-40E
Hose Size 1-1/4" 1-1/2" 1-1/4" 1-1/2"
D(mm) 640
W(mm) 750 880 750 880
H(mm) 660
Inlet(female) 1-1/4", NPT 1-1/2", NPT 1-1/4", BSPT 1-1/2", BSPT
Outlet(mm) 6 / 7 / 8
Max working pressure 7 bar
