Fire Hose Reel Assembly


  • Certificate:
ISO
  • Mounting :
Cabinet
  • Hose material :
EPDM / PU
  • Hose size :
1.5 / 2.5 "
  • Hose length :
30 meters / customized
  • Reel surface :
Red polyester epoxy power coating

Descriptions


Conforming to BS standard, fire hose reel provides a steady and quick water supply to combat a potential Class A fire risk. It is wall mounted in buildings with cabinet protection. An inline valve or external valve is furnished to control water from wet risers to hose. Fixed type fire hose reel only rotates in one plane. Swinging fire hose reel can also move along the swing arm.


Main parts and material


Hose Fire hose as UL 2019
(Refer to TPMC F16 Spec.)
Side plates Cold rolled mild steel / SS
Drum (reel) Welded steel structure
Hose couplings Forged brass as NFPA 1963
(Refer to TPMC F19 Spec.)
Drum(reel) Carbon steel tube
Cotter pin Carbon steel / copper / SS

Specifications

Model F37-40 F37-65
Hose Size 1.5" X 30 m 2.5" X 30 m

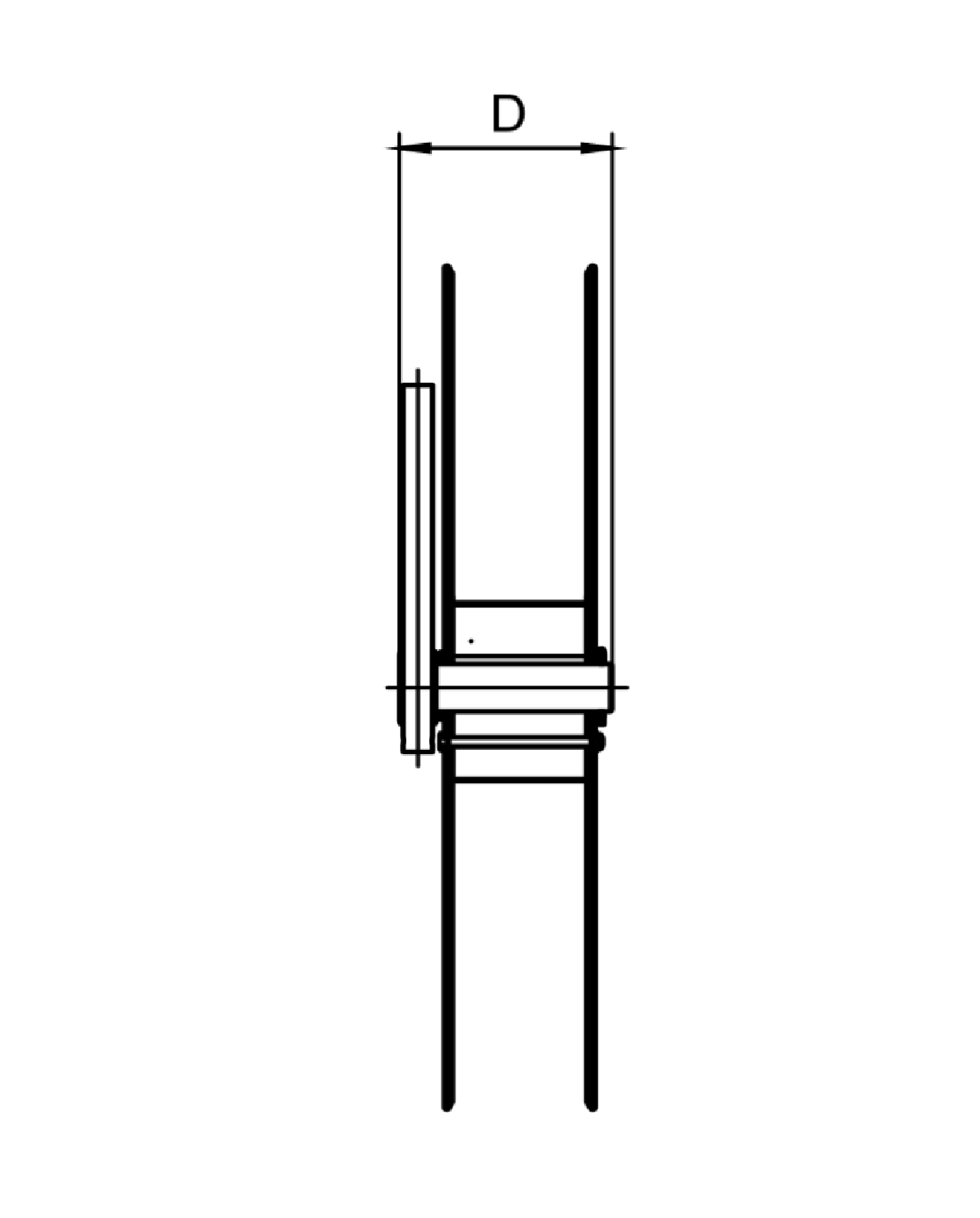

D(mm) 135 170
W(mm) 535
H(mm) 460 600
Inlet(female) 1.5" NH 2.5" NH
Outlet
Max working pressure 200 ~ 400 PSI
